Fiber Laser Welding Machine Price Company
Product details of the fiber laser welding machine price
Quick Overview
The material used for Suzhou ForwayLaser Technology Co., Ltd is new and good for health. The product has been subject to thorough tests to ensure that it is excellent in quality, performance, functionality, etc. Our fiber laser welding machine price has a wide range of applications. Stressing the value of quality assurance of Forway has helped attract more clients.
Product Information
Compared with similar products, the fiber laser welding machine price of Forway is more strict in the selection of raw materials. The specific aspects are as follows.
Product Description

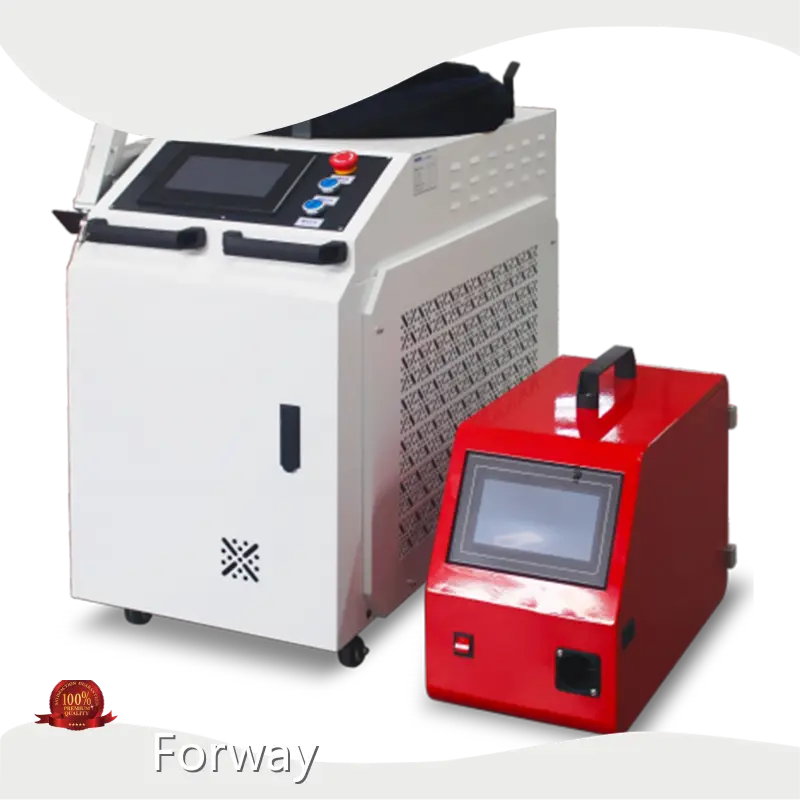

The MHJ-E series handheld laser welding machine is a new generation of laser welding products. The laser selected is a high-quality Kaiprin laser light source, and the entire machine adopts an integrated design, with beautiful appearance and stable performance, easy installation and simple operation, and high safety. It has the characteristics of fast welding speed, high efficiency, good welding effect, low welding consumables, long service life, and environmental protection. It can be widely used for welding in industries such as kitchen utensils, door and window guardrails, stairs and elevators, stainless steel furniture, hardware sheet metal, billboards, craft gifts, automobile repair, automobile manufacturing, rail transit, and aerospace.
product Size
Product feature
● The internal design is agile, with a good interactive control system, which expands the tolerance range of processing components and weld width, solves the disadvantage of small light spots, and improves weld formation;
● Lightweight design with ergonomic design methods, providing a comfortable grip; Easy to control with one hand, easy to operate and hands-on;
● Equipped with multiple safety alarms, automatically locking the light after removing the workpiece, with high safety;
● Beautiful welding seam, fast speed, no consumables, no welding marks, no discoloration, no need for later polishing;
● Multiple angle nozzles can be configured to meet the welding needs of different products.
Product parameters
|
Model series |
MHJ-E series（Laser brands available:Kaiprin Laser/Ruike/Chuangxi） |
||
|
model |
MHJ-1000E |
MHJ-1500E |
MHJ-2000E |
|
Laser model |
1000W |
1500W |
2000W |
|
output power |
1000W |
1500W |
2000W |
|
Laser Wavelength |
1080+10 nm |
||
|
Working mode |
Continuous/Modulation |
||
|
Power regulation range |
10 ~ 100% |
||
|
Fiber core diameter |
25 or50 |
||
|
Aiming and positioning |
Red light |
||
|
Fiber Length |
12 m |
||
|
Welding speed |
0 ~ 120 mm/s |
||
|
Applicable thickness |
＜ 3.5mm（Depending on the material） |
||
|
wire feeder |
standard configuration wire feeding speed 38~600mm/min |
||
|
Wire feeding diameter |
0.8/1.0/1.2/1.6/2.0mm |
||
|
Cooling method |
hydrocooling |
||
|
work environment |
10~40°C、humidity 10~85%、No condensation |
||
|
rated power |
3.5KW |
4.5KW |
6KW |
|
working voltage |
220±20V,AC,PE,50/60Hz |
||
|
External dimensions |
1150X630X1080 mm |
||
|
Overall weight |
about180kg |
||
Marking Effect
Standard Layout
Laser Welding Gun
Laser welding heads are widely used in complex and irregular welding procedures in industries such as stairs, elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel furniture, etc; Perfect replacement for traditional argon arc welding, welding of metal materials such as stainless steel plate, iron plate, aluminum plate, etc.
● The internal design is agile, with a good interactive control system, which expands the tolerance range of processing components and weld width, solves the disadvantage of small light spots, and improves weld formation；
● Lightweight design with ergonomic design methods, providing a comfortable grip; Easy to control with one hand, easy to operate and hands-on；
● Equipped with multiple safety alarms, automatically locking the light after removing the workpiece, with high safety；
● Beautiful welding seam, fast speed, no consumables, no welding marks, no discoloration, no need for later polishing；
● Multiple angle nozzles can be configured to meet the welding needs of different products.
Company Information
Located in su zhou, Suzhou ForwayLaser Technology Co., Ltd is a company that mainly produces Laser Marking Machine,Laser Cutting Machine,Laser Engraving Machine,Laser Welding Machine,Laser Cleaning Machine in industry. Aiming to build an 'internationally famous enterprise', Suzhou ForwayLaser Technology Co., Ltd comprehensively promotes business upgrading and management transformation, enhances its value competitiveness, and strives to become a leading company with outstanding core business in the industry. In recent years, Forway selected and trained outstanding talents from many well-known institutions at home and abroad, who are of great importance to our talents team. This makes a contribution to our company's sustainable development. Forway insists on providing customers with one-stop overall solution from the customer's point of view.
If you want to know more details of our products, please contact us. We are looking forward to cooperating with you!
